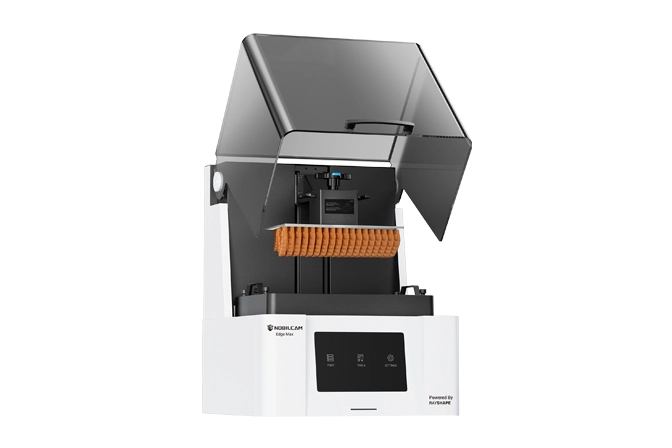

Nobilcam Edge Max 3D Printer

Experience a transformative leap in dental fabrication with the large format Edge Max 3D Printer: Elevate your production efficiency with maximized output per print cycle! This robust machine boasts an expansive build volume of 290x160x190mm, ensuring rapid throughput and unparalleled accuracy. Ideally equipped for a diverse range of dental applications, the Edge Max excels in orthodontic appliance production, as well as the creation of fixed and removable prosthetics, and implantology models, positioning it as an indispensable tool for dental laboratories.

Get a Quote

Specifications

Specifications of Nobilcam Edge Max 3D Printer

Build volume	290×160×190 mm
Rated power	500W
Pixel size	50µm
Technology	LCD Technology
Control system	Self-developed Master.OS
Dynamic layer thickness	0.05~0.1 mm
Language	English, Chinese
Printing speed	up to 36 mm / 1 hour (Depending on the resin type and slicer settings)
Operating system	Windows 7/8/10/11
File format	(Import):.stl, .obj (Export):.rs, .shape
Available materials	ShapeMaterials Dental Series
LCD screen	13.6-inch 7K
Advanced functions	Support editing, automatic repair, model cutting, hollowing, perforating, labeling
ShapeMaterials Dental Series	405nm LED
Network printing	Deliver printing tasks to specified printer in LAN environment via“One Click”operation
Cluster management	Manage the printing tasks of multiple devices in LAN environment
Resolution	6480×3600 pixels
Door control	Printing will be paused automatically if the cover is opened(optional)
Heating module	Automatic heating build platform
Device dimension	480×500×650 mm
Touch screen	10-inch
Net weight	39 kg
Connectivity	USB2.0, Wireless network, Ethernet
Package size	540×540×900 mm
Package weight	60 kg
Input	100~120VAC, 4A, 50/60Hz 200~240 VAC, 2A, 50/60Hz
