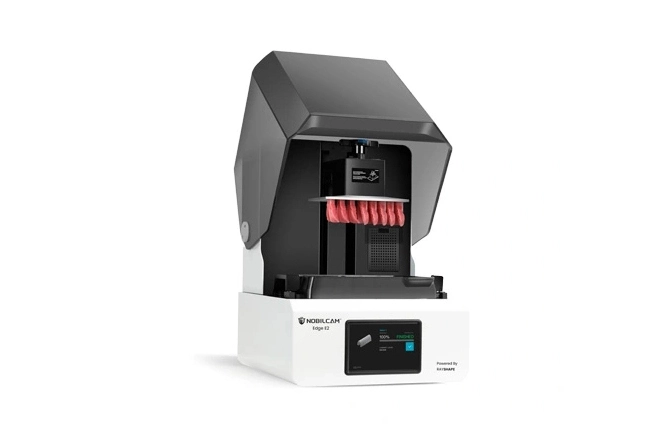

NOBILCAM Edge E2 3D Printer

The NOBILCAM Edge E2 presents a LCD-based additive manufacturing system, specifically engineered for dental practitioners at the forefront of the digital dentistry transformation. This advanced 3D printing apparatus excels in rapid prototyping, ensuring high-resolution and consistent print outcomes. It features a 9.25-inch monochrome 6k LCD panel, which is adept at handling comprehensive maxillary and mandibular arches for the fabrication of dental appliances. Applications Include: Surgical guides, splints, gingiva masks, try-ins, custom trays, dentures, record models, clear aligners, castings, temporary restorations, and indirect bonding.

Get a Quote

Specifications

Specifications of NOBILCAM Edge E2 3D Printer

Build volume	192 × 120 × 190 mm
Rated power	350 W
Pixel size	34.4μm
Technology	LCD Technology
Control system	Self-developed Master.OS
Dynamic layer thickness	0.05~0.1 mm
Language	English, Chinese
Printing speed	Up to 85 mm / 1 hour (Depending on the resin type and slicer settings)
Operating system	Windows 7/8/10/11
File format	(Import):.stl, .obj (Export):.rs, .shape
Available materials	ShapeMaterials Dental Series
LCD screen	9.25-inch 6K
Advanced functions	Support editing, automatic repair, model cutting, hollowing, perforating, labeling
ShapeMaterials Dental Series	405nm LED
Network printing	Deliver printing tasks to specified printer in LAN environment via“One Click”operation
Cluster management	Manage the printing tasks of multiple devices in LAN environment
Resolution	5760 × 3600 pixels
Door control	Printing will be paused automatically if the cover is opened(optional)
Heating module	Automatic heating build platform
Device dimension	390 × 420 × 550 mm
Touch screen	7" color touchscreen
Net weight	31 kg
Connectivity	USB2.0, Wireless network, Ethernet
Package size	540 × 540 × 900 mm
Package weight	45 kg
Input	100~120VAC, 4A, 50/60Hz 200~240 VAC, 2A, 50/60Hz
